Toys Lock Fasten Screen Intelligent Desktop Factory Low Price Auto Screw Locking Insert Robot
$38,004.57
19 in stock
Description
Toys Lock Fasten Screen Intelligent Desktop Factory Low Price Auto Screw Locking Insert Robot
Toys Lock Fasten Screen Intelligent Desktop Factory Low Price Auto Screw Locking Insert Robot
We are a leading manufacturer of automated equipments for electronic assembly industry.
Our products include screw fastening robot, soldering robot, glue dispensing robot, fume extractors, etc.

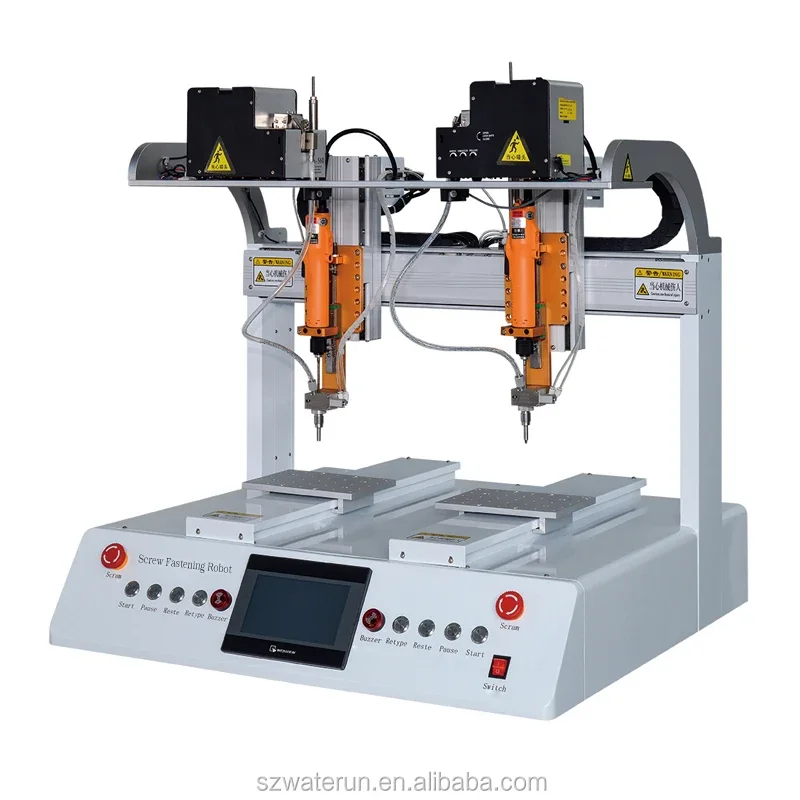

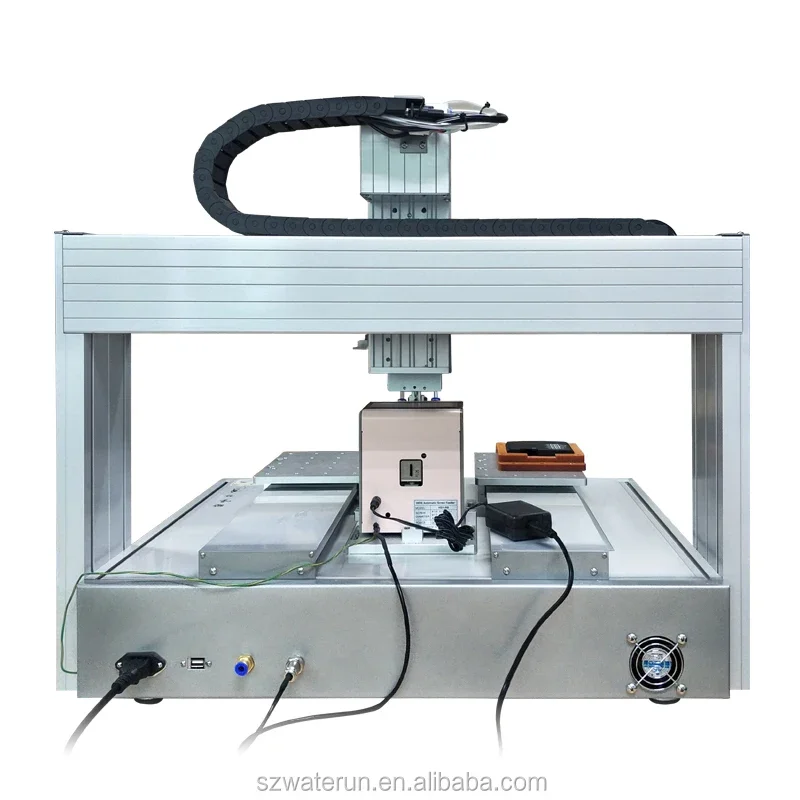

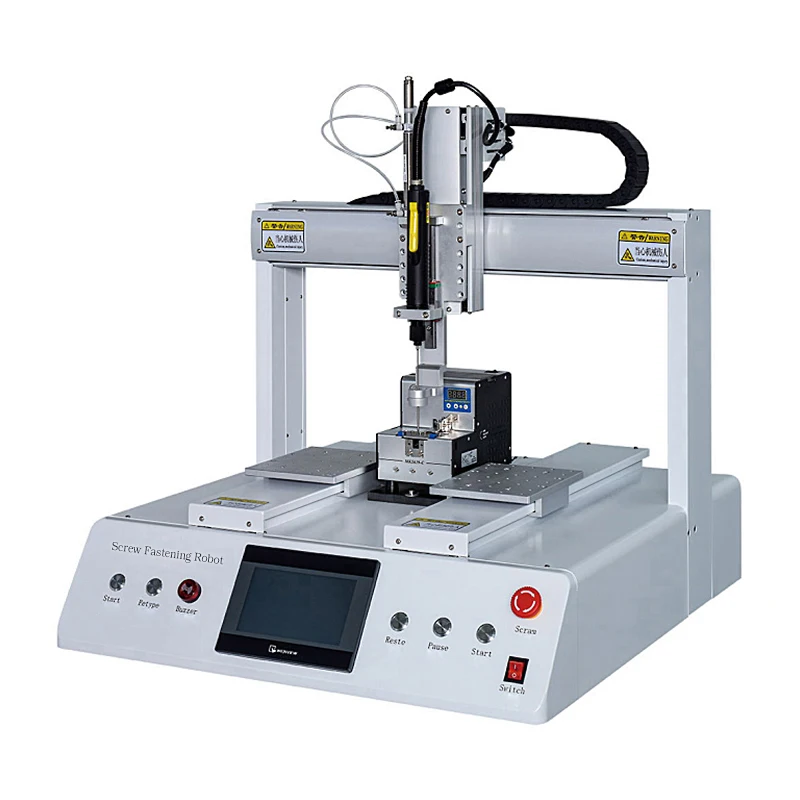

Two platform 4 axis desktop automatic screw fasten drive robot screwdriver machine
-

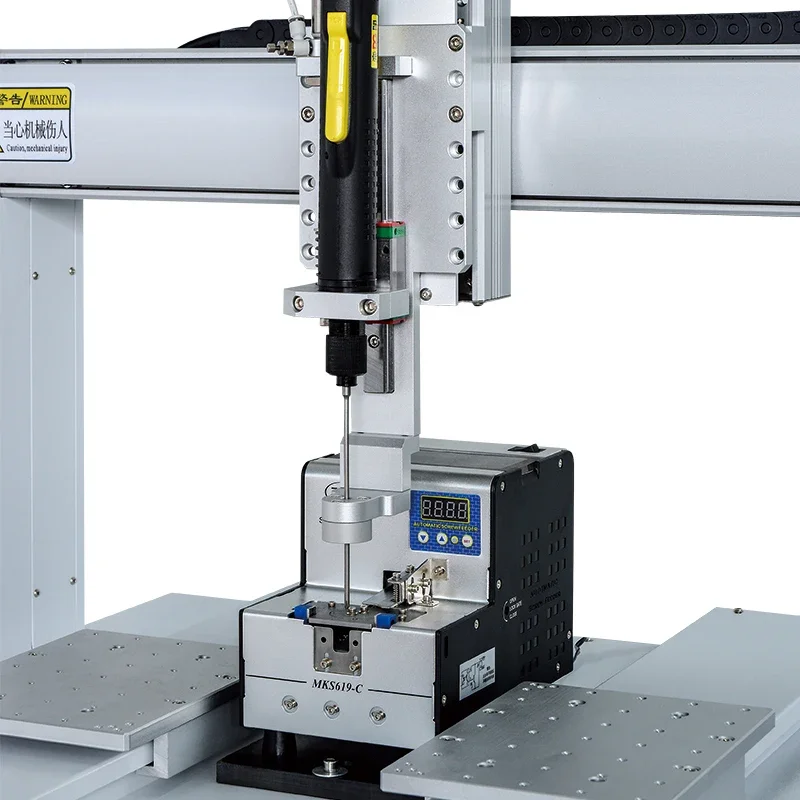

Magnetic suction (Vacuum suction for option), to achieve fast feeding and screwing.
-
The operator can use manual positioning do the programming. It is highly efficient and very easy to learn the operation.
-
With alarm function to fastening missing, untightened screws, worn tread, etc.
-
Support auto sensing start operation function.
-

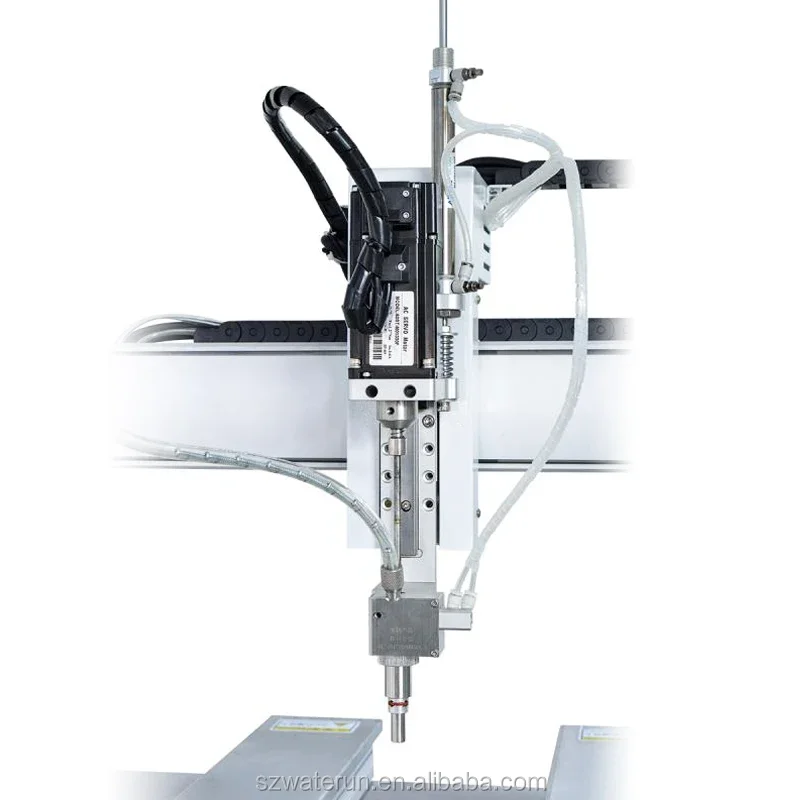

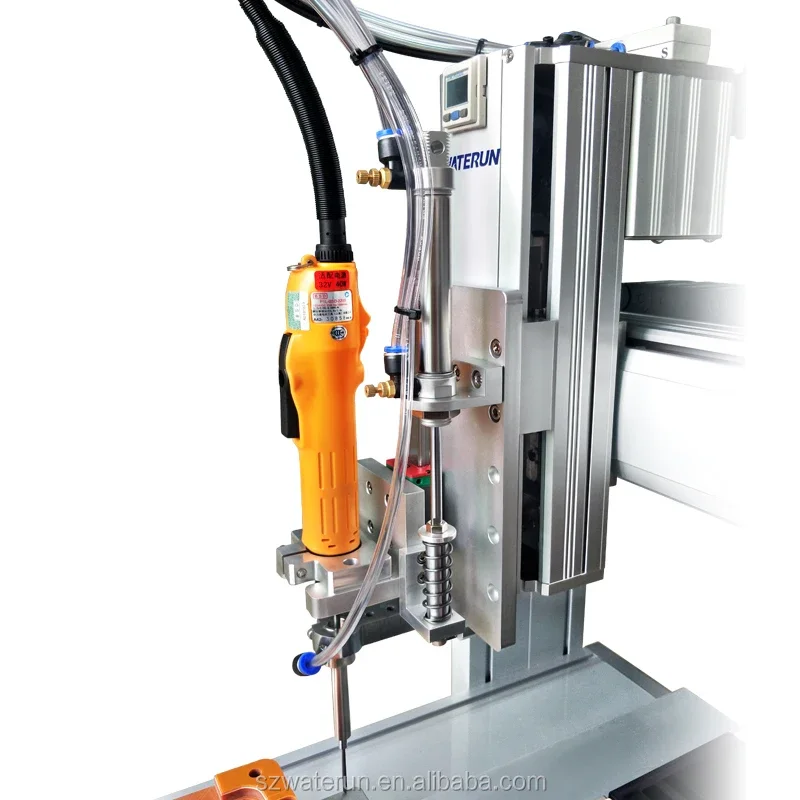

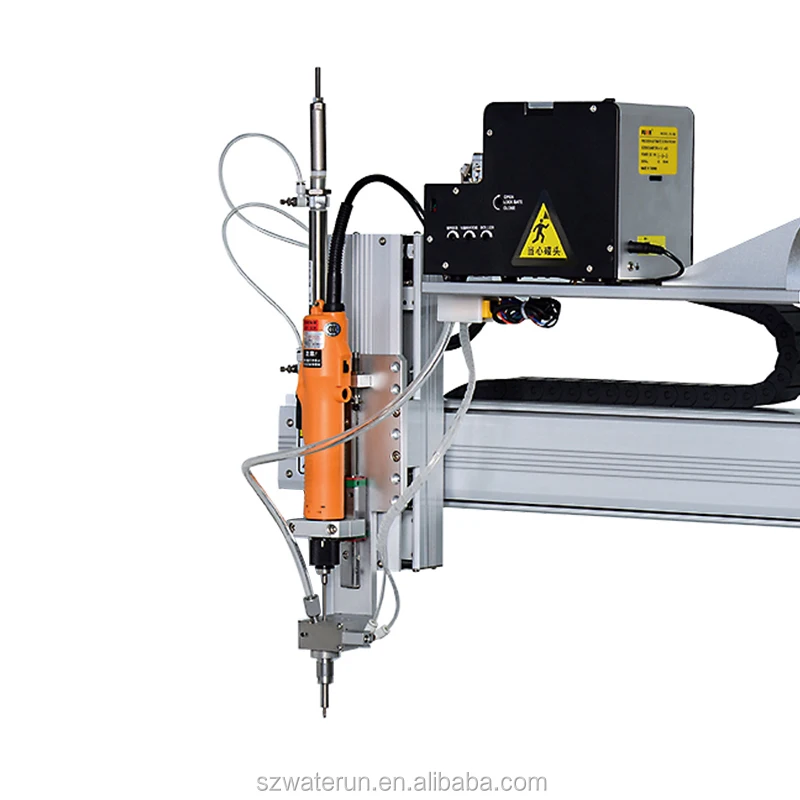

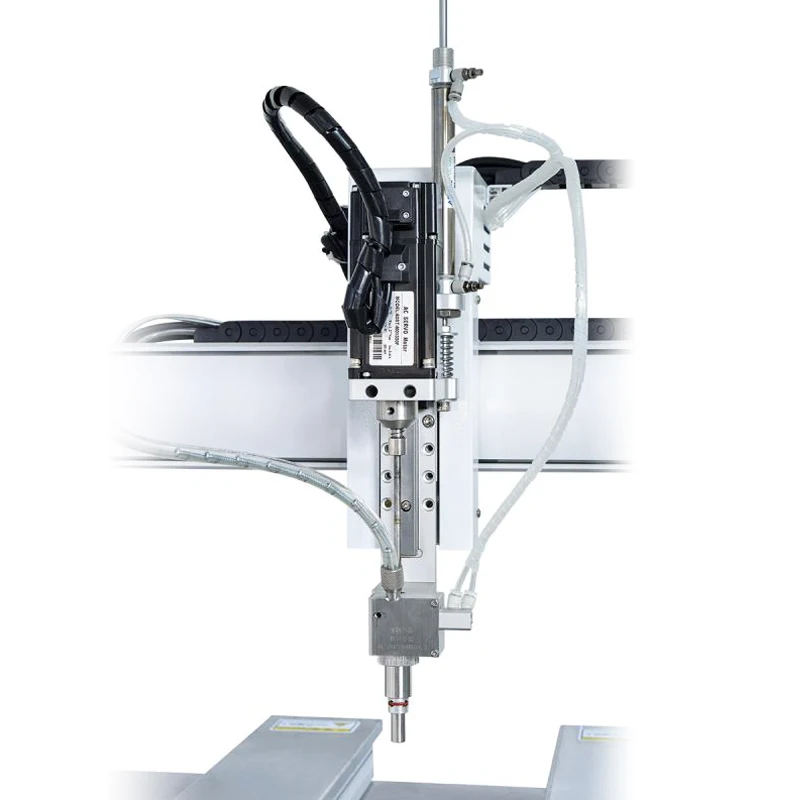

Servo motor or electric screwdriver are optional. Both of them can adjust the torque and rotation speed freely.
|
Two platform 4 axis desktop automatic screw fasten drive robot screwdriver machine |
||||
|
Model |
WT-4221-2Y |
WT-4223-2Y |
WT-4220-2Z |
|
|
Axis Range |
X |
210mm |
210mm |
200mm |
|
Y-1 |
420mm |
420mm |
420mm |
|
|
Y-2 |
420mm |
420mm |
420mm |
|
|
Z |
135mm |
135m |
135mm x 2Z |
|
|
Dimension (mm) |
L |
810 |
810 |
970 |
|
W |
720 |
720 |
820 |
|
|
H |
900 |
900 |
900 |
|
|
KG |
80 |
80 |
100 |
|
|
Power Source |
220V/110V (Please specify) |
|||
|
Motor |
Stepper Motor (Please specify if you need servo motor) |
|||
|
Precision |
+-0.03mm |
|||
|
Control System |
SCM + Touch Screen |
|||
|
Screwing Time for each screw |
1 ~ 1.5s/piece |
|||
|
Suitable Screw Size |
M1 – M4 |
|||
|
Program Capacity |
999files, each file can save up to 999 points |
|||
|
Movement Speed |
X/Y Axis <=500mm/s , Z axis:<= 300mm/s |
|||
HOT SALES

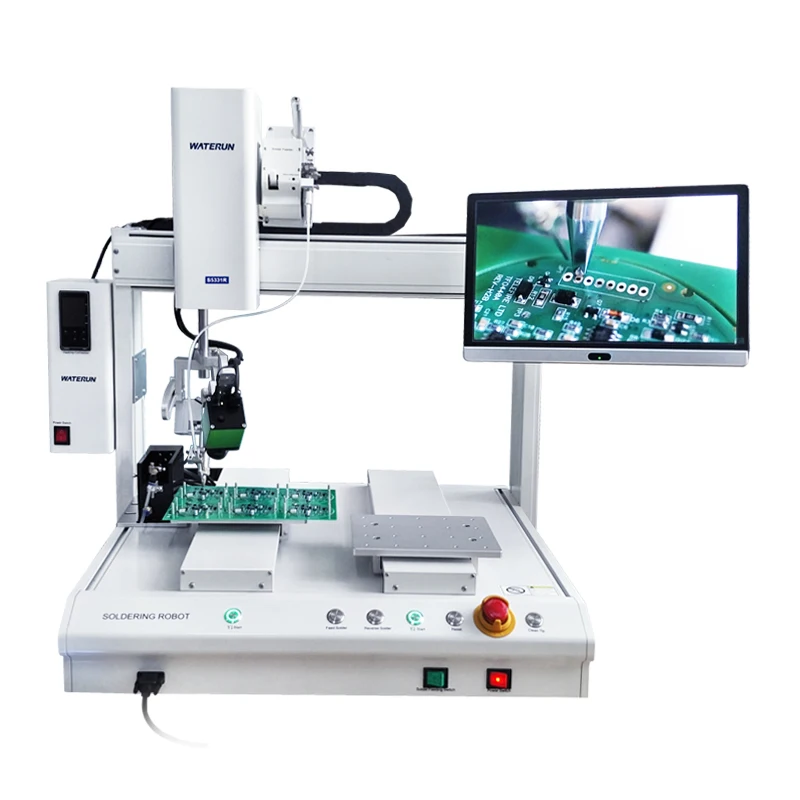

WATERUN S513 SOLDERING ROBOT
WT-4222-2Z SCREW FASTENING ROBOT

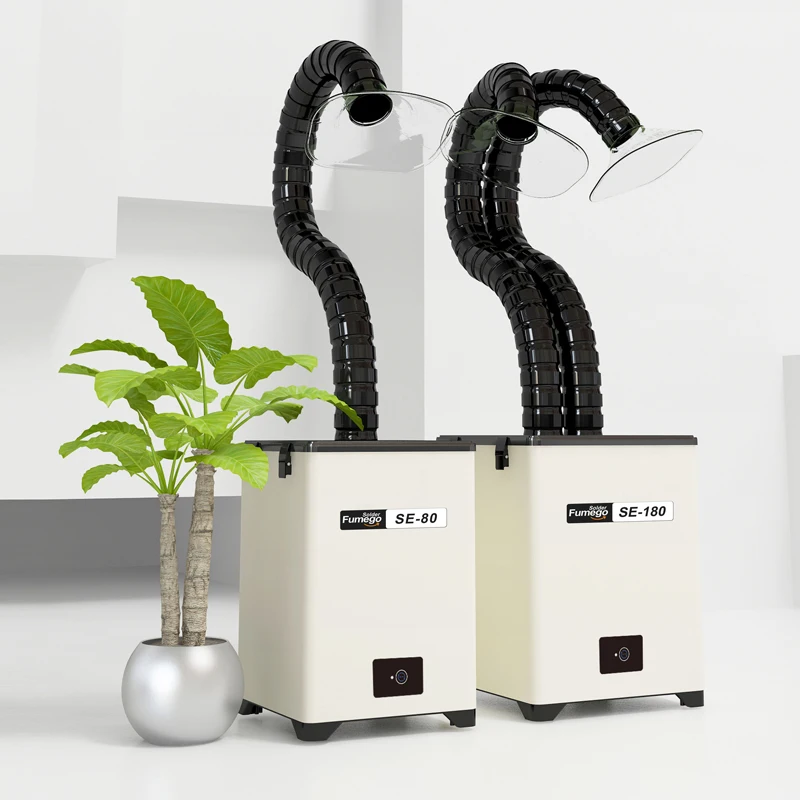

PORTABLE SOLDER FUME EXTRACTOR
|
1. Are you the manufacturer? |
|
Yes, our factories located in Shenzhen and Dongguan. We can offer OEM and ODM services.. |
|
2. What's your MOQ? |
|
We have no MOQ for this item, we can customize for one piece order according your requirment. |
|
3. What's your payment terms? |
|
Normally we can work on T/T ,VISA ,Mastercard ,West Union, Paypal. |
|
4. Your products have certificates? |
|
Most our products are complied with CE. |
|
5. How to make an order? What's the lead time? |
|
Our standard machines takes 7-15 days, Customized Item takes about 20-30 days.. |
|
6. Can I visit your factory before order? |
|
Yes, welcome to visit our factory. About 30~60 mins from Shenzhen Airport. |
|
7. Can you provide sample before a regular order? |
|
Sure, we accept sample order. |
|
For more details or catalogs, please click the enquiry button for more informations. |
