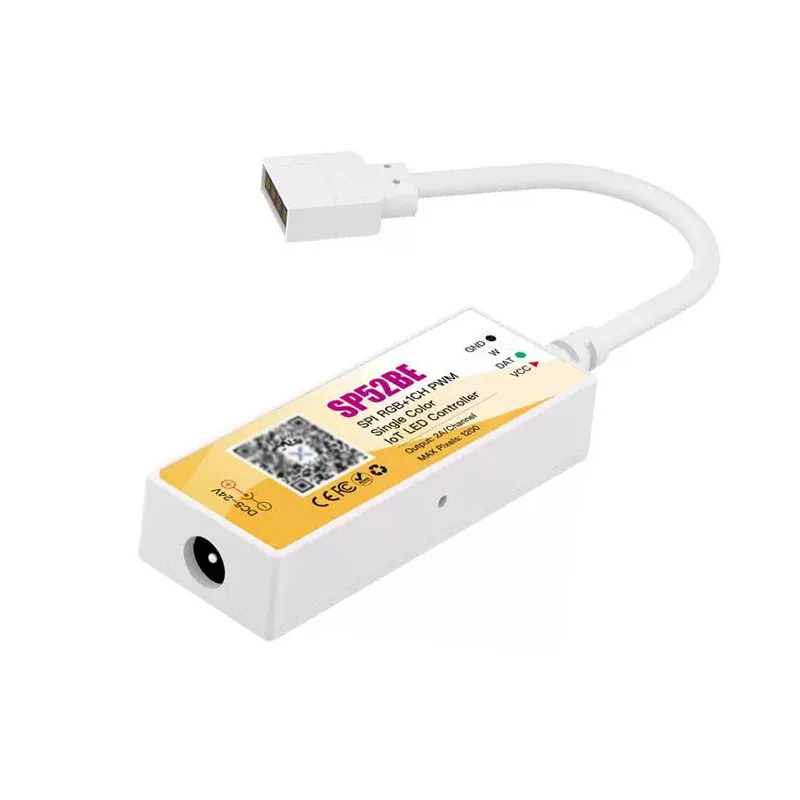

SP52BE BT Music Controller for RGB LED Strip Smart APP Sync with Sound Mode 4-Pin Wireless Controller for White LED Light Strips

Product introduction:

The SP52BE is an advanced IoT LED controller engineered for professional and DIY lighting projects. It masterfully combines an SPI interface for three-channel RGB pixels with a separate PWM channel for dedicated white light control, allowing for unparalleled command over dynamic color effects and pure white lighting. Equipped with advanced dual-mode BT & Wi-Fi connectivity, it supports seamless local control and full remote access via the "Banlan Cloud" platform, including compatibility with smart speakers for voice commands. From static dimming and dynamic ambiance to captivating music sync effects, the SP52BE is your all-in-one solution for sophisticated smart lighting.

Key Features

• Dual-Mode Connectivity: Features built-in BT for quick local setup and Wi-Fi for stable remote control from anywhere in the world.

• Cloud & Voice Control: Leverage the power of the "Banlan Cloud" for remote management and integration with popular smart speakers (e.g., Alexa, Google Assistant) for convenient voice control.

• Advanced Dual-Light Control: Utilizes SPI protocol for precise RGB pixel control and a dedicated 2A PWM channel for bright, dimmable white LEDs, enabling rich RGBW color mixing.

• High-Capacity Control: Capable of driving an impressive 1200 LEDs, making it ideal for large-scale and complex lighting installations.

• Versatile Lighting Effects: Offers a wide range of modes, including static color adjustment, dynamic ambiance patterns, and real-time music rhythm synchronization.

• Wide Voltage Compatibility: Supports a broad input voltage range from 5V to 24V DC, offering flexibility for various power supply setups.

• User-Friendly Reset: Simple factory reset procedure by cycling power five times.

Specifications

• Operating Voltage: DC 5-24V

• Control Protocol: SPI + 1CH PWM for White

• Operating Current: 12mA ~ 45mA

• Max Control Points: 1200 LEDs

• Operating Temperature: -10℃ ~ 60℃

• PWM Channel Max Output Current: 2A

• Controller Dimensions: 56mm * 21mm * 12mm (excluding wires)

• Net Weight: 15g

• Gross Weight: 20g

Factory Reset Guide
To restore factory settings, cycle the power on and off five times consecutively (keeping it on for 2 seconds each time). The controller will automatically reboot upon completion.

Ideal For
Smart Home Lighting, Architectural Lighting, DIY RGB Projects, Holiday Light Displays, Shop Window Decorations, Music Sync Systems, and Commercial Ambiance Lighting.

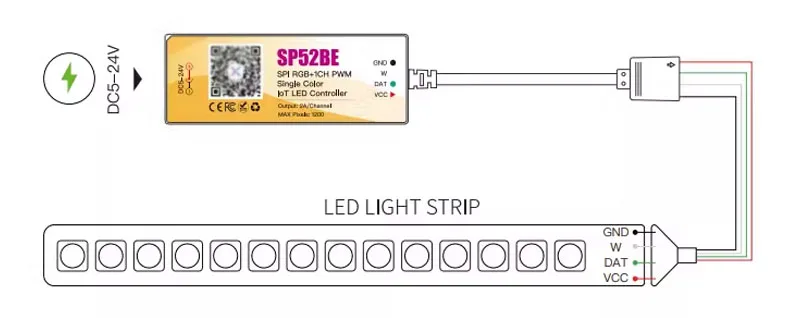

Product Wiring Diagram

Important Notes:

1. The product operates at a voltage range of 5-24V and must not be connected to any other voltage.

2. The wires should be correctly connected according to the colors and markings provided in the wiring diagram.

3. The product must not be overloaded.
