4 Axis Double Y Desktop Pcb Solder Paste Uv Epoxy Resin Hot Melt Adhesive Cnc Automatic Glue Dispenser Dispensing Machine Robot
$54,644.01
Description
Dear customer, I am in charge of this series of products and I serve as the company manager. You can contact me to obtain more discounts and other new product information. I can arrange training and use of the products for you to ensure that you can use them quickly and efficiently. This is my contact information. Please contact me before placing an order to obtain the correct price, which includes details of transportation and shipping costs. This is my business card information: Manager: Violet Ms WhatsApp:+86 15073113615 Email:ericqianrui@gmail.com
#detail_decorate_root .magic-0{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Arial,Helvetica;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}#detail_decorate_root .magic-1{width:750px}#detail_decorate_root .magic-2{overflow:hidden;width:750px;height:750px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-3{margin-top:0;margin-left:0;width:750px;height:750px}#detail_decorate_root .magic-4{overflow:hidden;width:750px;height:410.06493506493507px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-5{margin-top:0;margin-left:0;width:750px;height:410.06493506493507px}#detail_decorate_root .magic-6{overflow:hidden;width:750px;height:574.3093922651933px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-7{margin-top:0;margin-left:0;width:749.9999999999999px;height:574.3093922651933px}#detail_decorate_root .magic-8{overflow:hidden;width:247.33333333333334px;height:139.12500000000003px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-9{margin-top:0;margin-left:0;width:247px;height:139px}#detail_decorate_root .magic-10{overflow:hidden;width:247.33333333333334px;height:138.18623481781378px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-11{margin-top:0;margin-left:0;width:247px;height:164px}#detail_decorate_root .magic-12{margin-top:-47.06342780026991px;margin-left:-2.0026990553306345px;width:247px;height:185px}#detail_decorate_root .magic-13{vertical-align:top}#detail_decorate_root .magic-14{padding:0;margin:0;color:#333;font-size:14px;padding-left:4px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-15{font-size:22px}#detail_decorate_root .magic-16{vertical-align:top;display:block;padding-right:4px;box-sizing:border-box;padding-left:4px}#detail_decorate_root .magic-17{vertical-align:top;padding-bottom:4px;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-18{padding:0;margin:0;white-space:pre-wrap;font-size:14px}#detail_decorate_root .magic-19{font-size:18px}#detail_decorate_root .magic-21{font-size:20px}#detail_decorate_root .magic-22{vertical-align:top;display:inline-block;padding-right:4px;width:33.33%;box-sizing:border-box;margin-bottom:-4px;padding-left:4px;margin-top:-4px}#detail_decorate_root .magic-23{vertical-align:top;box-sizing:border-box;padding-top:4px}#detail_decorate_root .magic-24{width:245px;height:291px;overflow:hidden}#detail_decorate_root .magic-25{position:relative;left:0;top:-9px;width:245.00000000000003px;height:315.92105263157896px}#detail_decorate_root .magic-26{padding:0;margin:0;color:#333;font-size:14px;line-height:20px;font-weight:bold;white-space:pre-wrap}#detail_decorate_root .magic-27{font-size:16px}#detail_decorate_root .magic-28{position:relative;left:-36px;top:-3px;width:436.5px;height:291px}#detail_decorate_root .magic-29{position:relative;left:-1px;top:-24px;width:245px;height:367.4308300395257px}#detail_decorate_root .magic-30{width:245px;height:245px;overflow:hidden}#detail_decorate_root .magic-31{position:relative;left:0;top:0;width:245px;height:245px}#detail_decorate_root .magic-32{position:relative;left:0;top:0;width:245.00000000000003px;height:245.00000000000003px}#detail_decorate_root .magic-33{overflow:hidden;width:750px;height:846.1334745762713px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-34{margin-top:0;margin-left:0;width:750px;height:846.1334745762713px}#detail_decorate_root .magic-35{overflow:hidden;width:750px;height:817px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-36{margin-top:0;margin-left:0;width:750px;height:817px}#detail_decorate_root .magic-37{overflow:hidden;width:750px;height:632.8382838283828px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-38{margin-top:0;margin-left:0;width:750px;height:632.8382838283828px}#detail_decorate_root .magic-39{overflow:hidden;width:750px;height:386.6108786610879px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-40{margin-top:0;margin-left:0;width:750px;height:386.6108786610879px}#detail_decorate_root .magic-41{width:750px;border-collapse:collapse}#detail_decorate_root .magic-42{min-height:28px;padding:5px 10px;width:138px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-43{text-align:center}#detail_decorate_root .magic-44{min-height:28px;padding:5px 10px;width:173px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-45{min-height:28px;padding:5px 10px;width:180px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-46{min-height:28px;padding:5px 10px;width:170px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-47{min-height:28px;padding:5px 10px;width:564px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-48{display:none}#detail_decorate_root .magic-49{min-height:28px;padding:5px 10px;width:14px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-50{min-height:28px;padding:5px 10px;width:0;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-51{min-height:28px;padding:5px 10px;width:563px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-52{min-height:28px;padding:5px 10px;width:170.659px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-53{min-height:28px;padding:5px 10px;width:179.659px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-54{min-height:28px;padding:5px 10px;width:170.828px;min-height:28px;box-sizing:content-box}#detail_decorate_root .magic-55{margin-bottom:10px;overflow:hidden}#detail_decorate_root .magic-56{text-align:left}#detail_decorate_root .magic-57{position:relative}#detail_decorate_root .magic-58{position:absolute;left:12px;top:12px;height:24px;z-index:3;overflow:hidden;background-color:#3a3531;display:flex;align-items:center;border-radius:12px;font-size:12px;color:white;padding:2px 6px}#detail_decorate_root .magic-59{height:24px;width:24px;background-image:url(“https://img.alicdn.com/tfs/TB1fYbeJ4z1gK0jSZSgXXavwpXa-144-144.gif”);background-repeat:no-repeat;background-size:cover}#detail_decorate_root .magic-60{margin-left:4px}#detail_decorate_root .magic-61{overflow:hidden;width:750px;height:421.7411988582303px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-62{margin-top:0;margin-left:0;width:750px;height:421.7411988582303px}#detail_decorate_root .magic-63{overflow:hidden;width:184.5px;height:103.6970802919708px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-64{margin-top:-16.043478260869566px;margin-left:-3.008152173913044px;width:212px;height:118px}#detail_decorate_root .magic-65{overflow:hidden;width:184.5px;height:103.27989130434783px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-66{margin-top:0;margin-left:0;width:184px;height:123px}#detail_decorate_root .magic-67{margin-top:0;margin-left:0;width:184px;height:115px}#detail_decorate_root .magic-68{margin-top:0;margin-left:0;width:184px;height:103px}#detail_decorate_root .magic-69{overflow:hidden;width:184.5px;height:123px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-70{overflow:hidden;width:184.5px;height:122.33152173913044px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-71{overflow:hidden;width:750px;height:405.8948863636364px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-72{margin-top:0;margin-left:0;width:750px;height:405.8948863636364px}#detail_decorate_root .magic-73{overflow:hidden;width:750px;height:391.3649025069638px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-74{margin-top:0;margin-left:0;width:750px;height:391.3649025069638px}#detail_decorate_root .magic-75{overflow:hidden;width:750px;height:562.5px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-76{margin-top:0;margin-left:0;width:750px;height:562.5px}#detail_decorate_root .magic-77{overflow:hidden;width:373px;height:343.4056886227545px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-78{margin-top:0;margin-left:0;width:373.00000000000006px;height:343.4056886227545px}#detail_decorate_root .magic-79{overflow:hidden;width:373px;height:343px;margin-top:0;margin-bottom:0;margin-left:4px;margin-right:0}#detail_decorate_root .magic-80{margin-top:0;margin-left:0;width:457.3333333333333px;height:343px}#detail_decorate_root .magic-81{overflow:hidden;width:750px;height:574px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-82{margin-top:0;margin-left:0;width:750px;height:574px}#detail_decorate_root .magic-83{overflow:hidden;width:750px;height:505.0403225806452px;margin-top:0;margin-bottom:0;margin-left:0;margin-right:0}#detail_decorate_root .magic-84{margin-top:0;margin-left:0;width:750px;height:505.0403225806452px}#detail_decorate_root .magic-85{margin-bottom:10px;line-height:0}#detail_decorate_root .magic-86{margin-bottom:0}#detail_decorate_root .magic-87{position:relative;width:100%}#detail_decorate_root .magic-88{border-bottom-style:solid;border-bottom-color:#53647a;font-family:Roboto;font-size:24px;color:#53647a;font-style:normal;border-bottom-width:2px;padding-top:8px;padding-bottom:4px}
Product Description

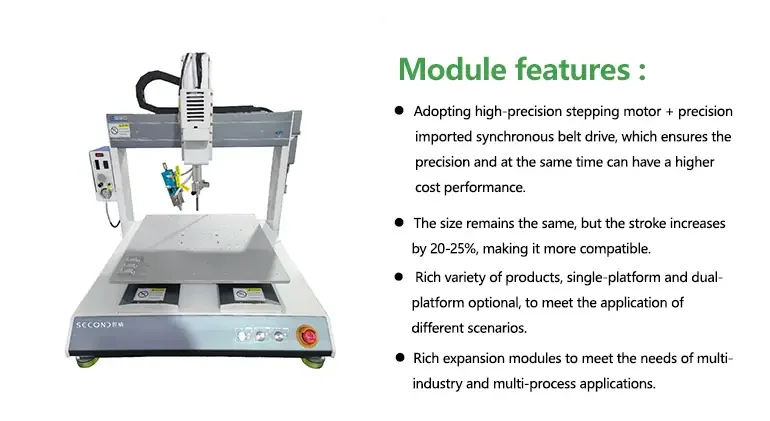

Features:

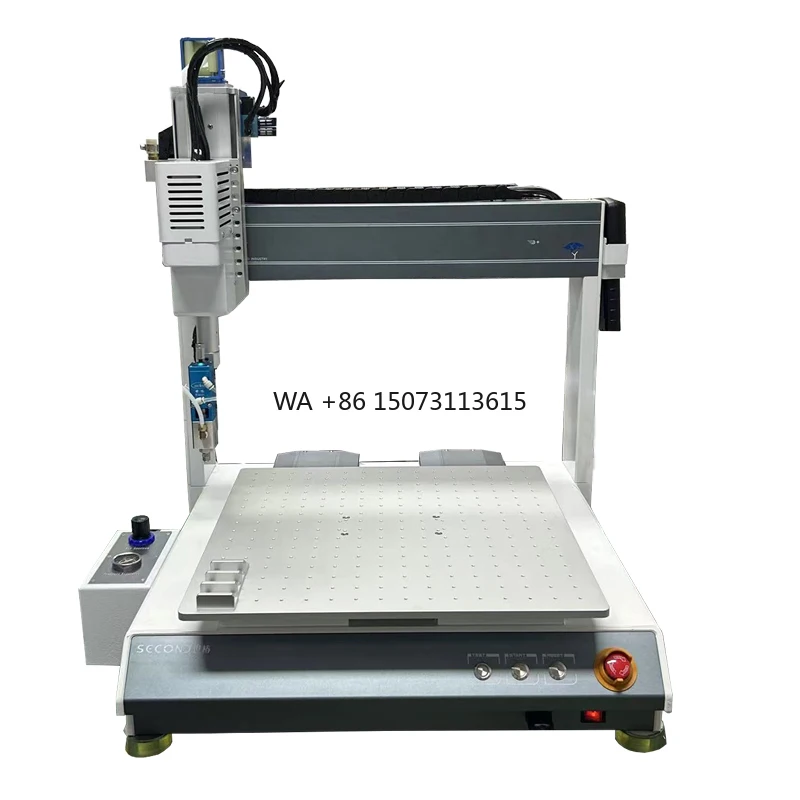

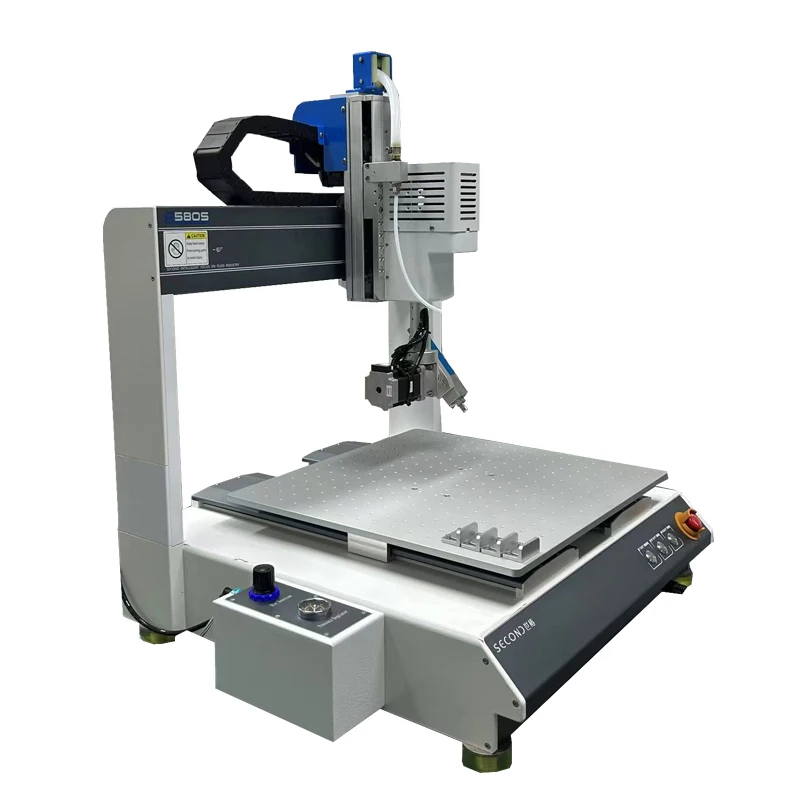

1.Durable fully automatic 4 axis Double Y dispensing robot.
2.Suit for UV glue, solder paste, red glue…etc.
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.

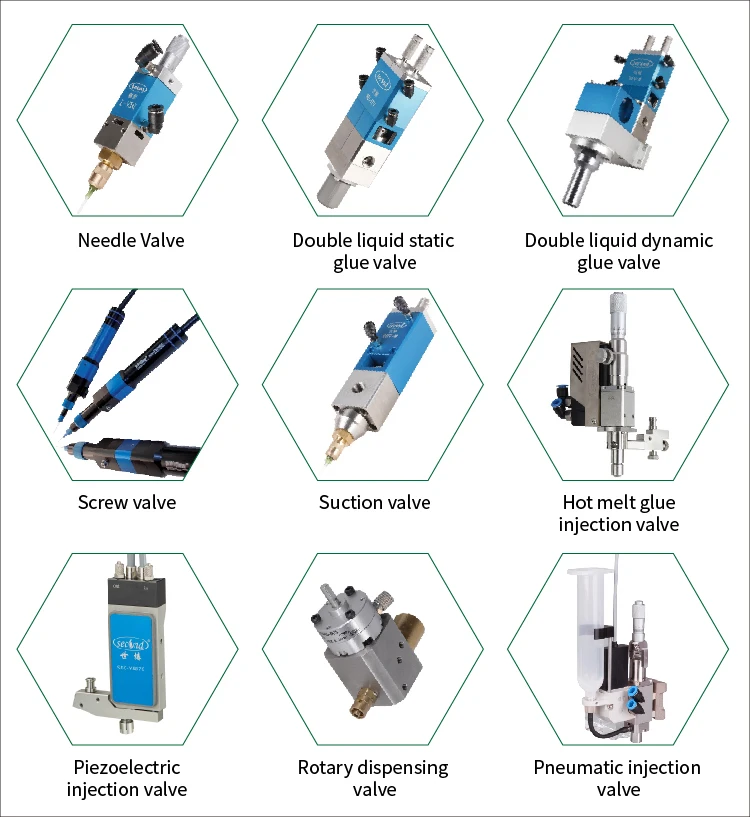

5. Can be equipped with different glue supply systems
2.Suit for UV glue, solder paste, red glue…etc.
3.One-piece die-casting aluminum boday.
4.User friendly teaching pendant.
5. Can be equipped with different glue supply systems

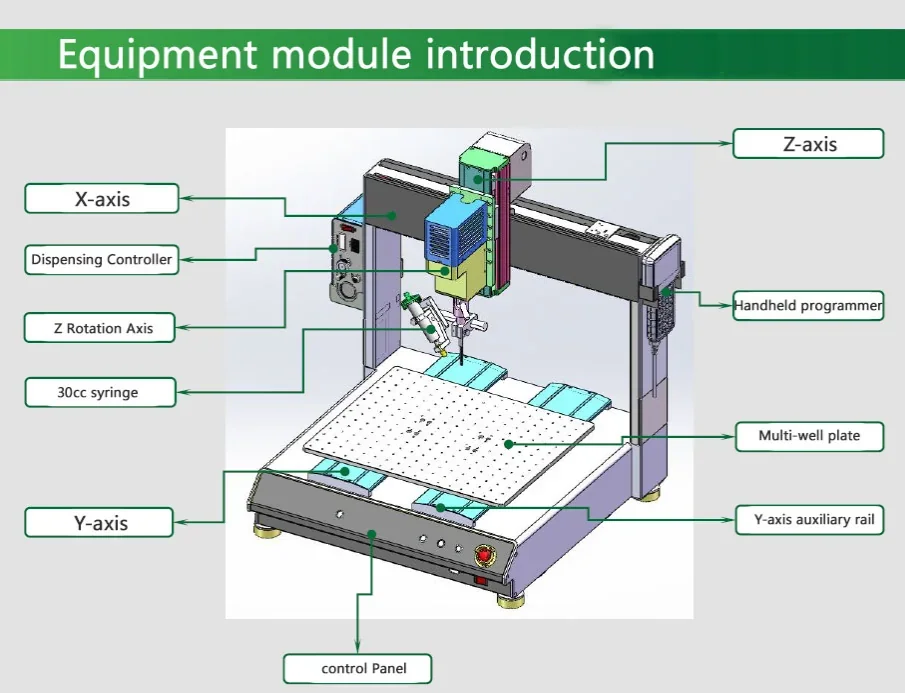

Details

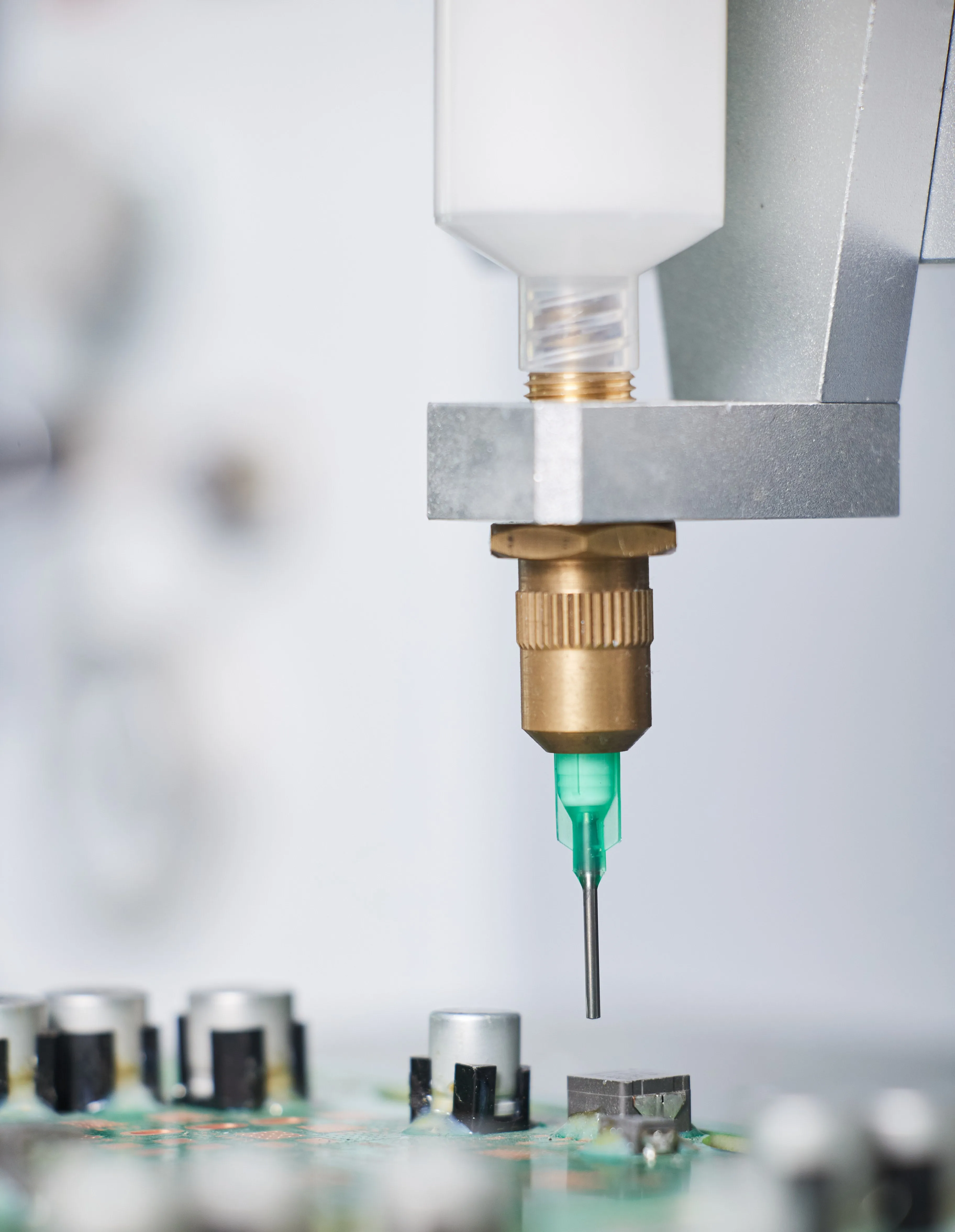

Brass Connector
The brass material has good corrosion resistance and chemical resistance, can be well adapted to various glues, durable for a long time.

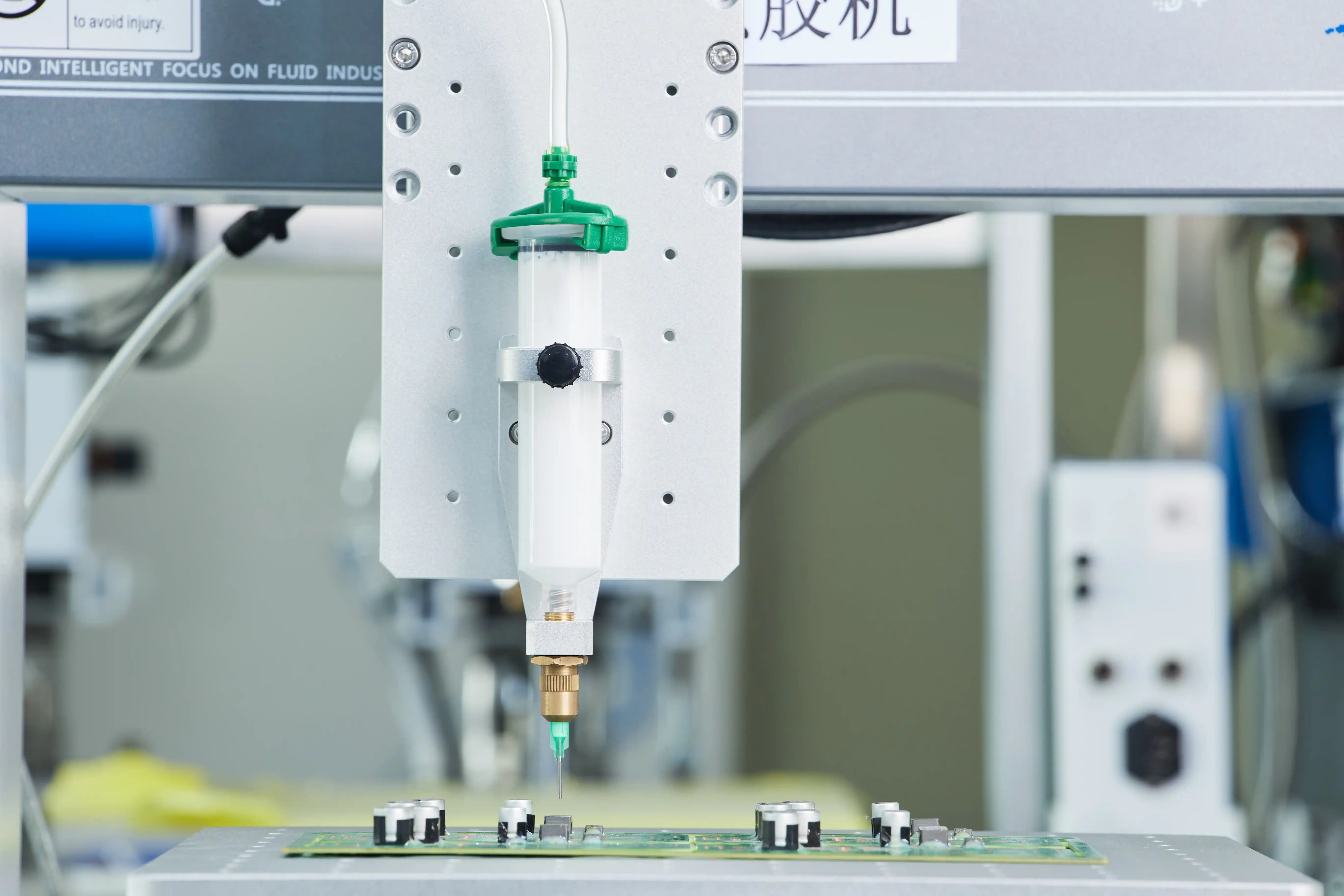

Syringe dispensing
Suitable for 5cc, 30cc, 50cc syringe packaging glue, convenient and easy to replace.
One-piece die-casting aluminum body
Lighter in weight, saves the use of screws, and the structure is more stable and durable.

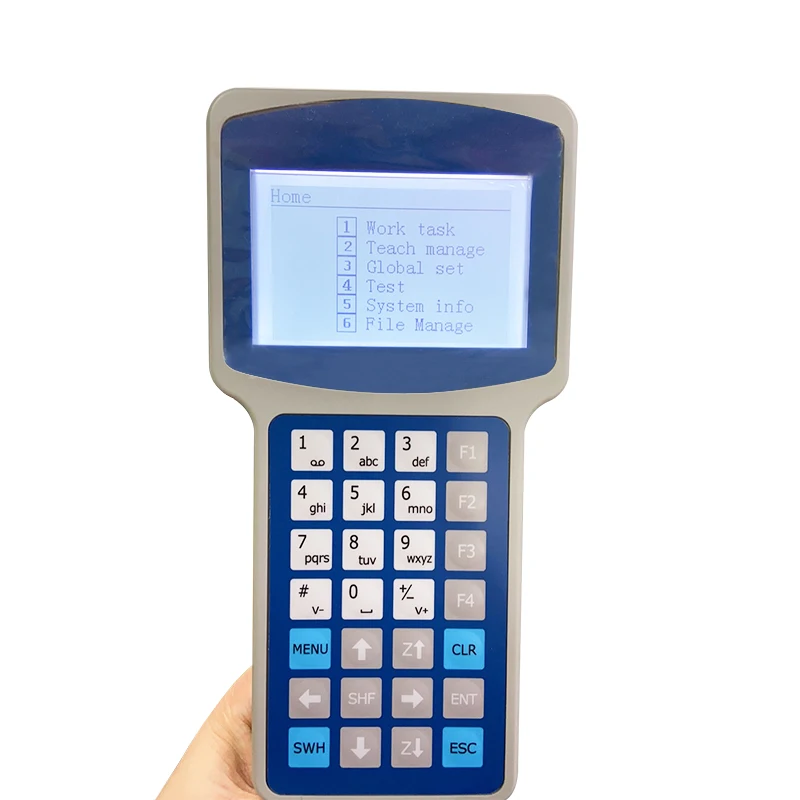

Teaching pendant
The operation and programming are convenient and simple, up to 999 programs can be stored.

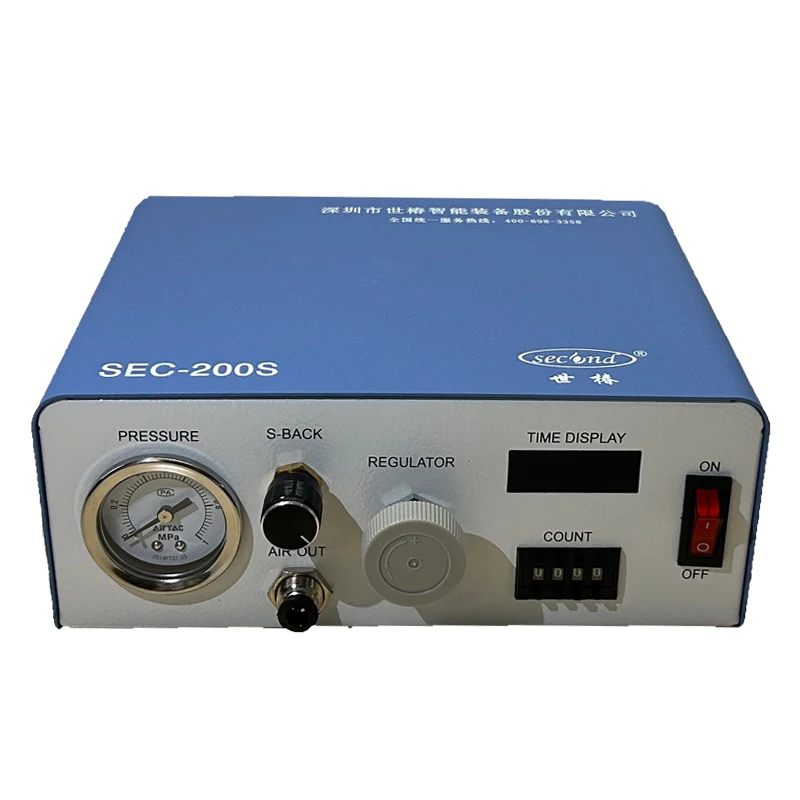

Dispensing controller
Precisely control the size of the air pressure to ensure the stability of the amount of glue.

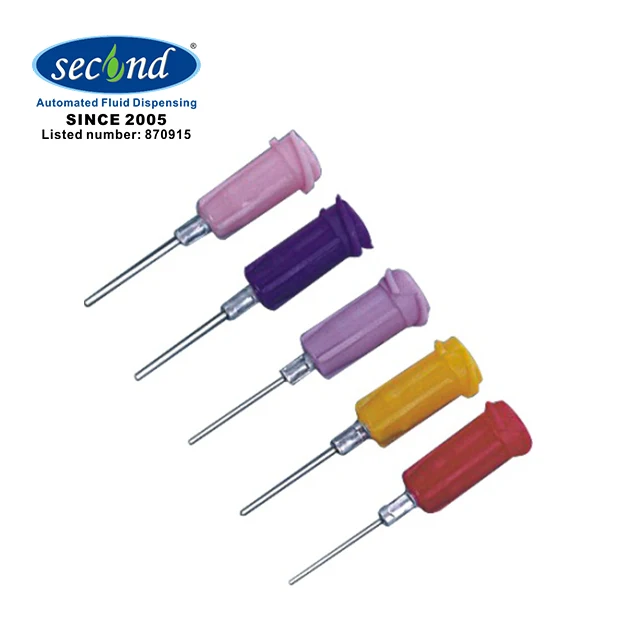

Precision needles
Precision dispensing needles, stainless steel needles, flexible needles, large-flow oblique needles, etc.

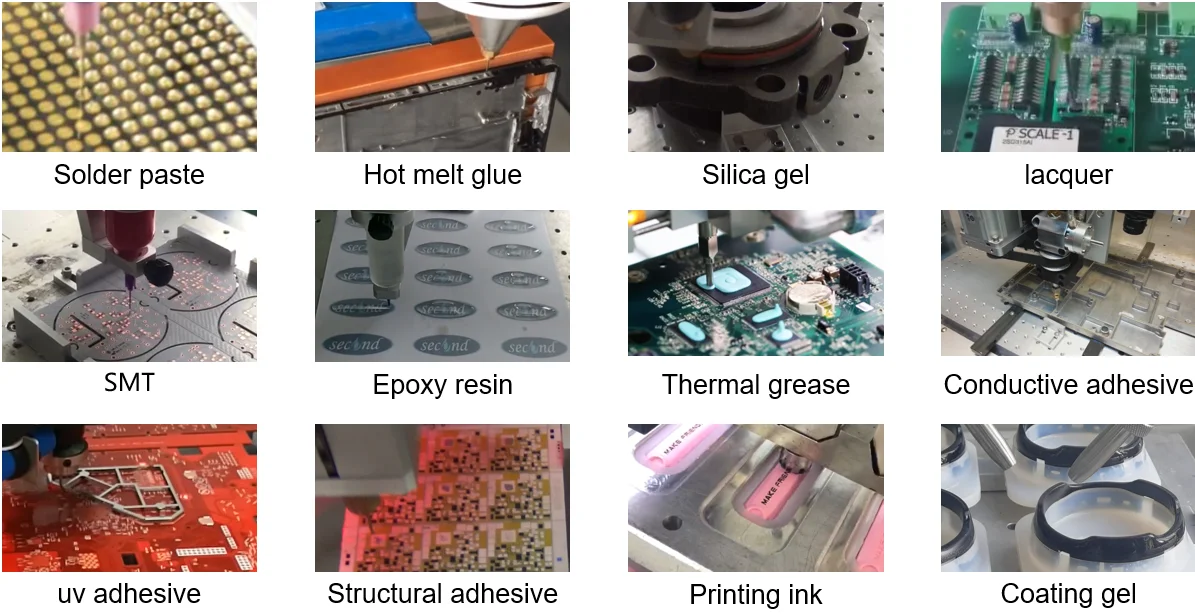

Applications
Specification
|
Model
|
SEC-E380
|
SEC-E480
|
SEC-E580Y
|
||
|
Working range
|
380(X)*380(Y)*100(Z锛塵m
|
480(X)*480(Y)*100(Z锛塵m
|
580(X)*480(Y)*100(Z锛塵m
|
||
|
Max payload
|
7kg(Y)/5kg(Z)
|
|
|
||
|
Max travel speed
|
300mm/sec(XY)/200mm/sec(Z)
|
|
|
||
|
Driven mode
|
Stepper motor, belt, lead screw
|
|
|
||
|
XYZ position accuracy
|
±0.025mm
|
|
|
||
|
Resolution
|
0.01
|
|
|
||
|
Memory storage
|
999 program setup (each program store up to 65535 spots)
|
|
|
||
|
Operating method
|
LCD, User friendly teach pendant
|
|
|
||
|
Motor
|
Precision stepper motor
|
|
|
||
|

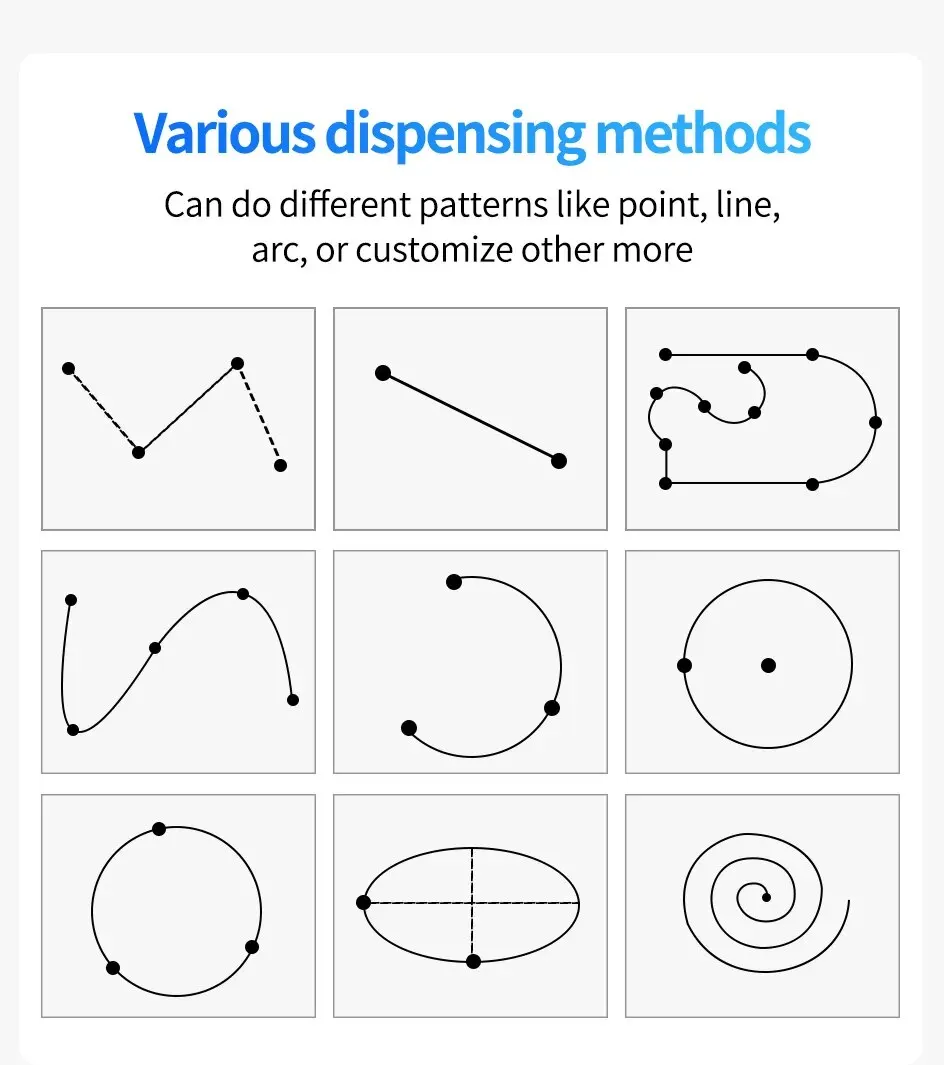

Monement patterns
|
3 axis spot to spot, continue line, arc
|
|
|
||
|
I/O
|
1 input, 4 output(support expansion)
|
|
|
||
|
Power supply
|
AC 22V 50/60 Hz 0.5 KW
|
|
|
||
|
Working environment
|
Temperature 0~40鈩冿紝Humidity 20%~90%
|
|
|
||
|
Weight
|
Approx 48kg
|
Approx 60kg
|
Approx 75kg
|
||
|
Machine demension
|
520*583*645mm
|
620*683*645mm
|
720*783*645mm
|
||

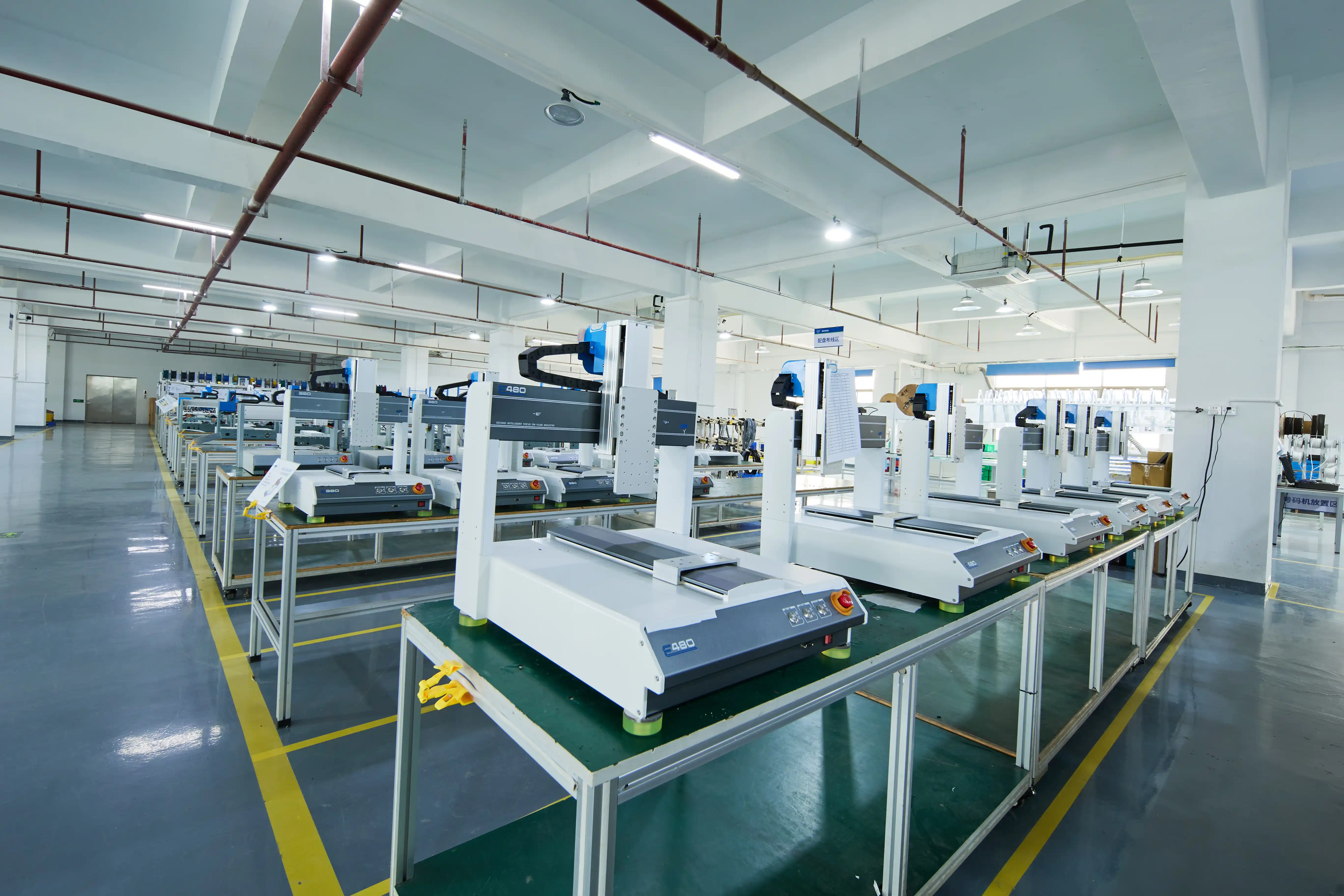

Company Profile

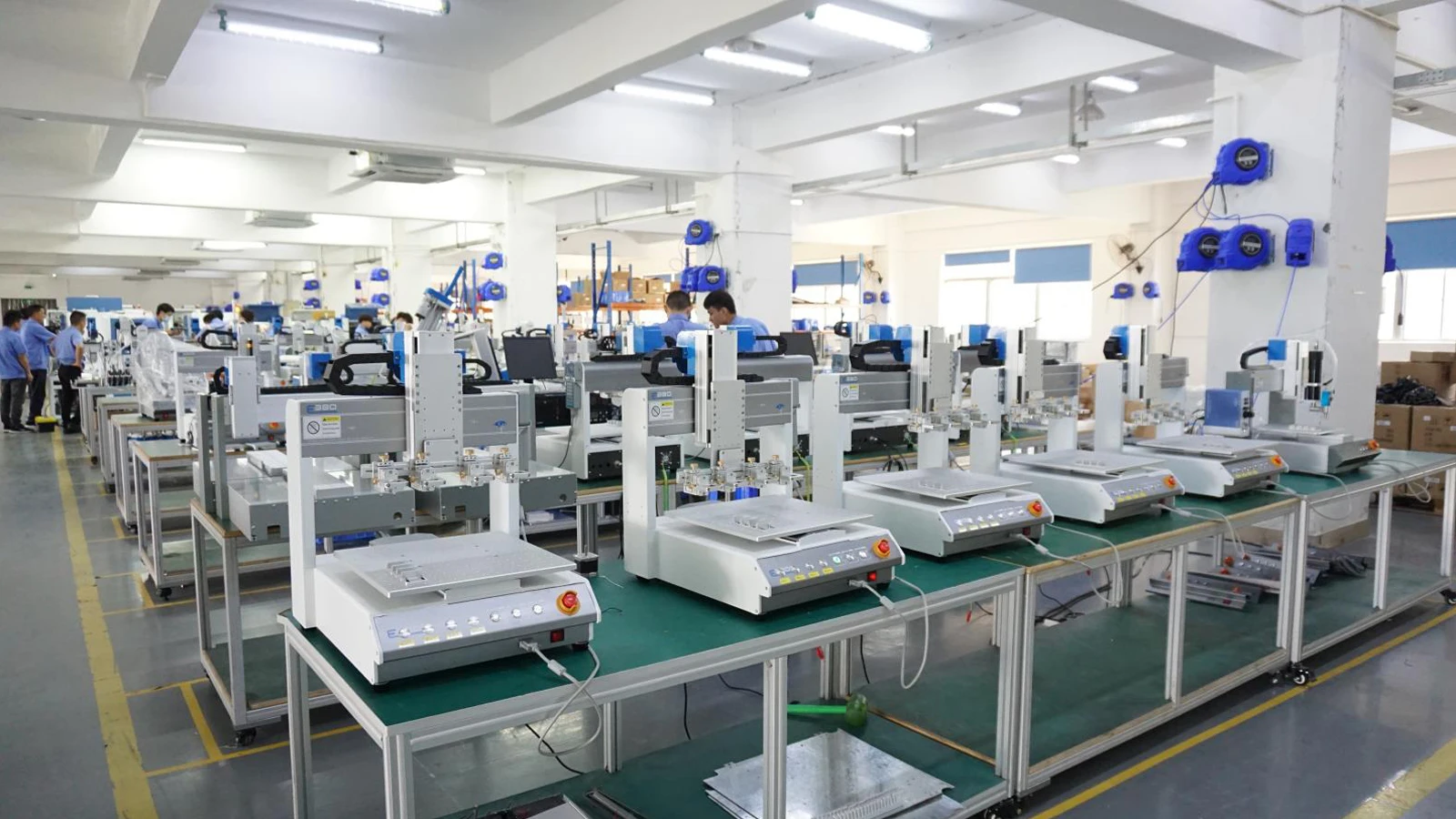

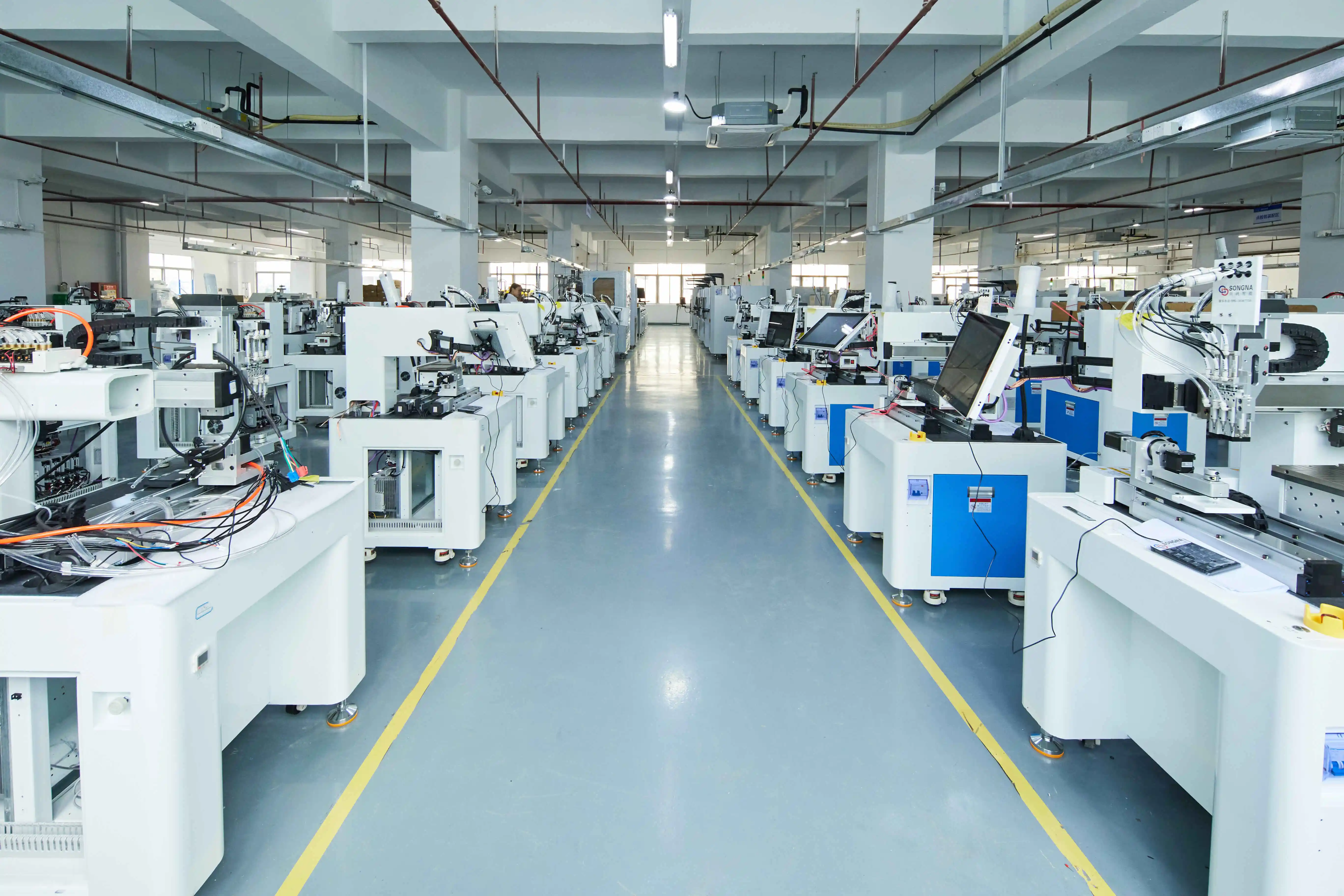

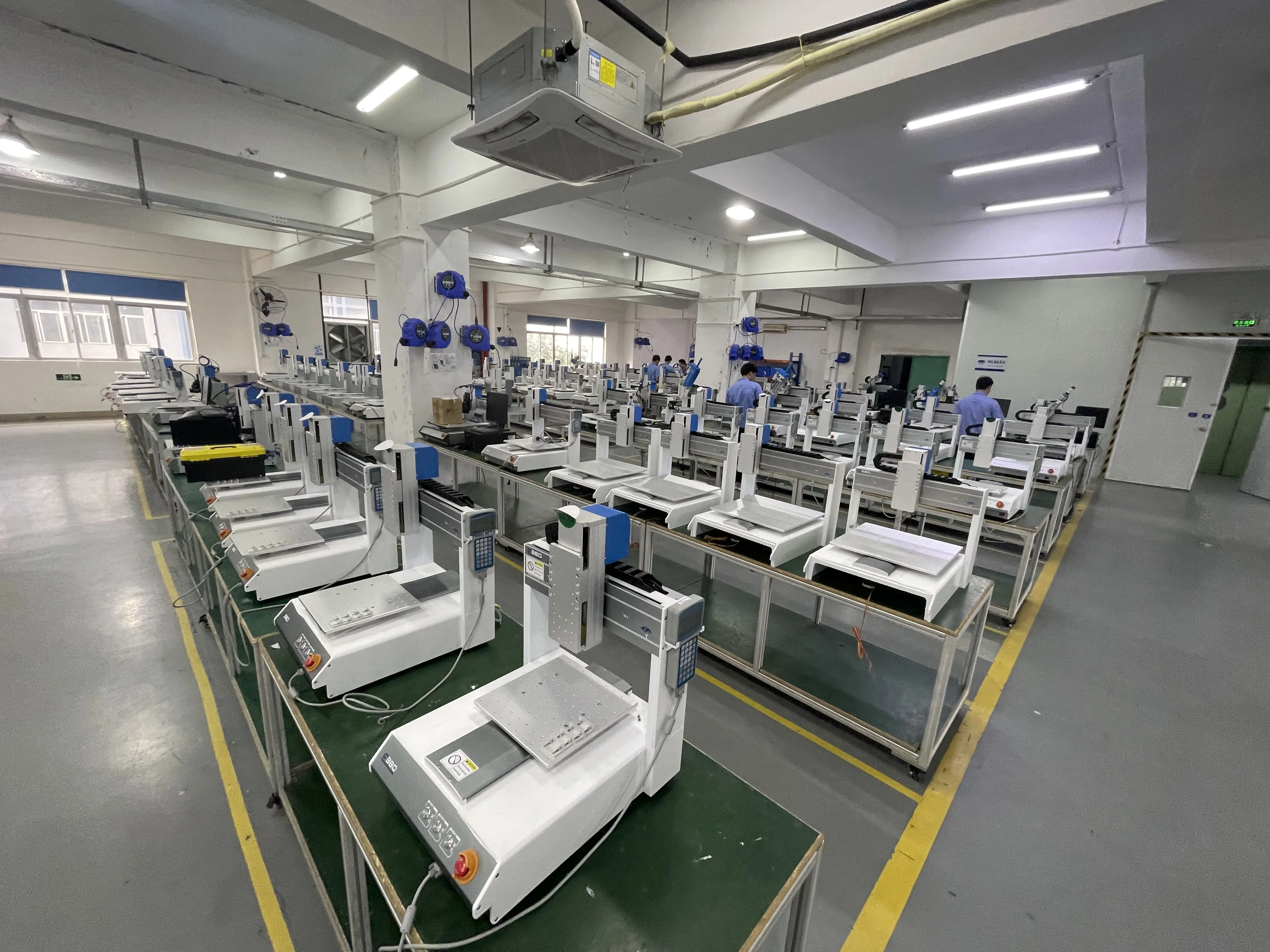

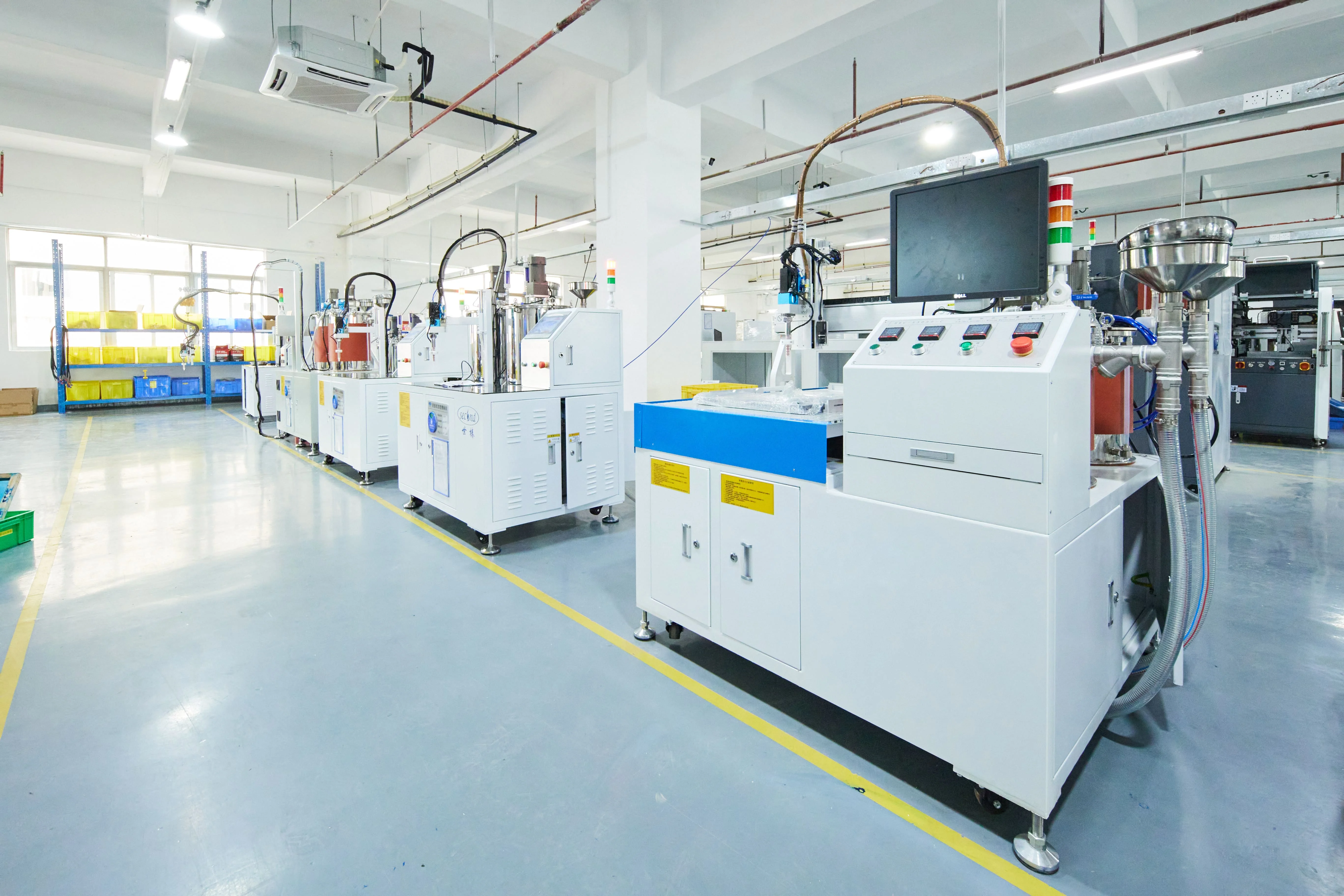

This is Second Intelligent established in 2006 with based in Shenzhen and is recognized as China’s leading manufacturer of providing solutions to fluid dispensing challenges, services customers across various industrial sectors with unparalleled technical expertise.
—Direct manufacturer with 18 years experience
—700+ staffs
—45000+銕� Total floor space
—300+ core technology patents
—ISO 9001 / TS 16949 Certification/National “Little Giant” Enterprise
—Customers in 52 countries
Main Products Desktop Glue Dispensing Machine Solutions EMS High-Precision Glue Dispensing Machine Solutions Two Component Glue Potting Machine Solutions Full Line Equipment Dispensing Potting Solutions Glue Dispensing Machines Accessories And Parts

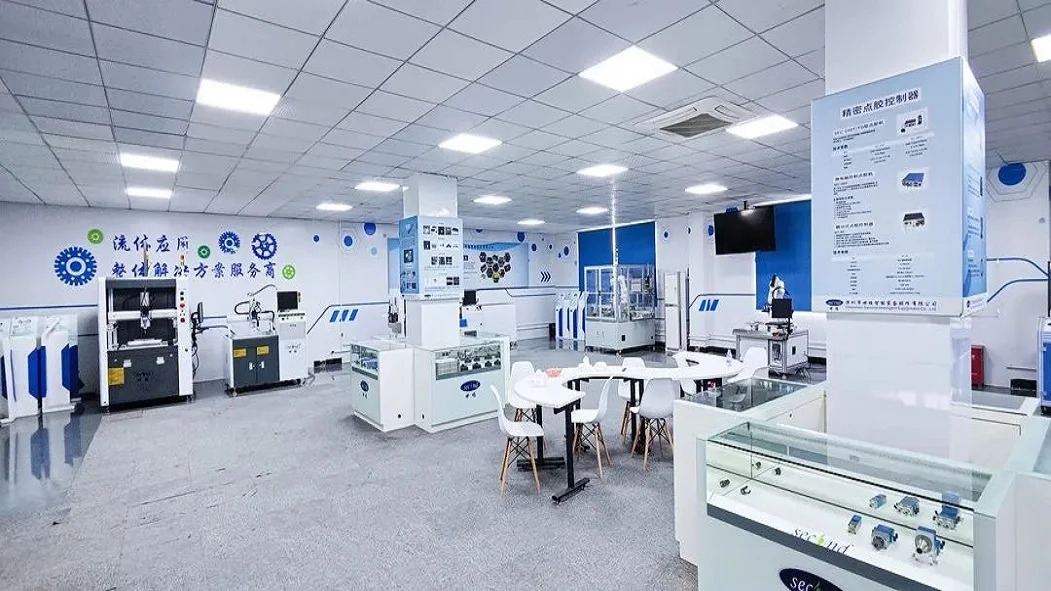

VR
Global Market
Our machines are sold all over the world, and we have cooperated with 52 countries so far. We have a professional overseas sales team and after-sales service.
Partners
Exhibition

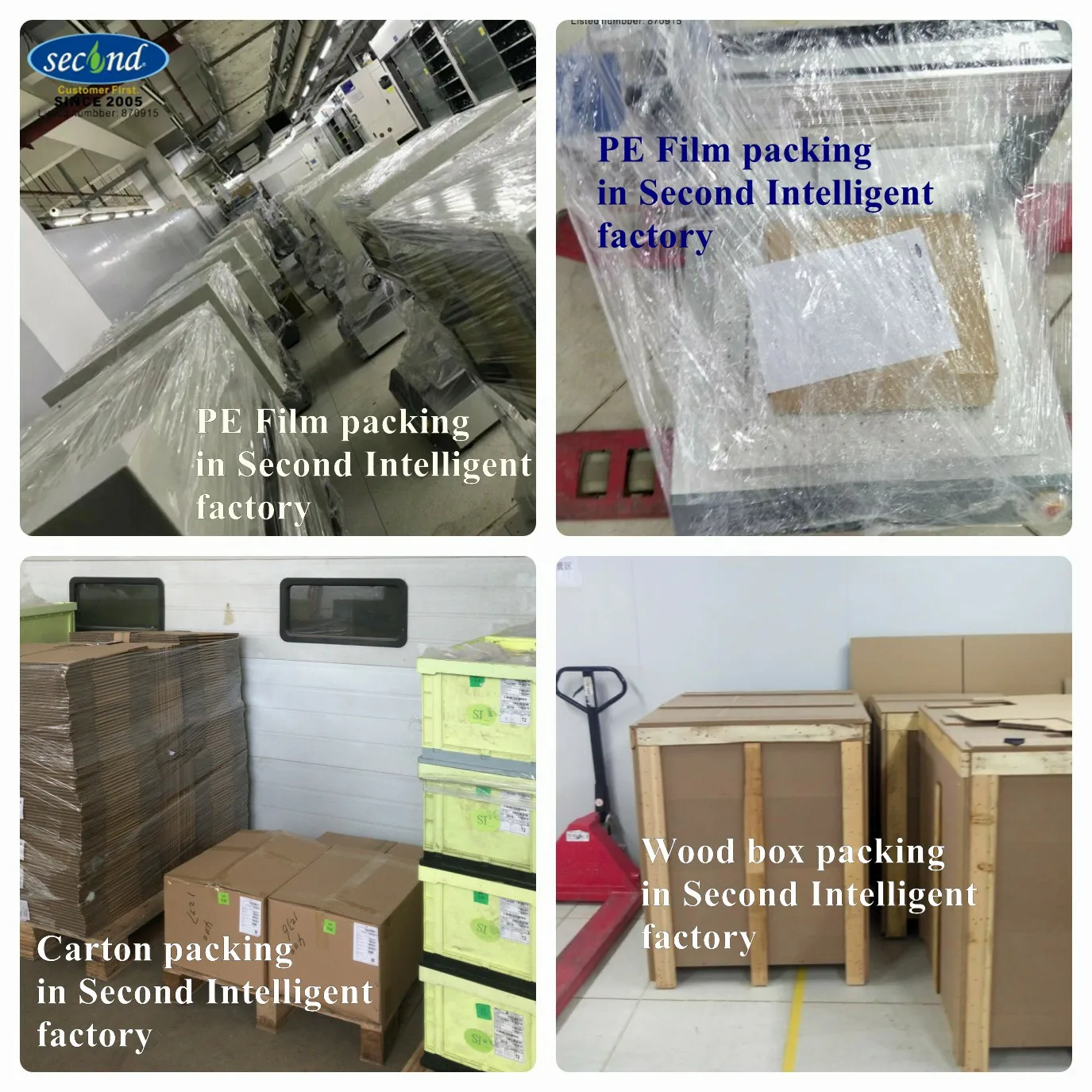

Packing & Delivery
